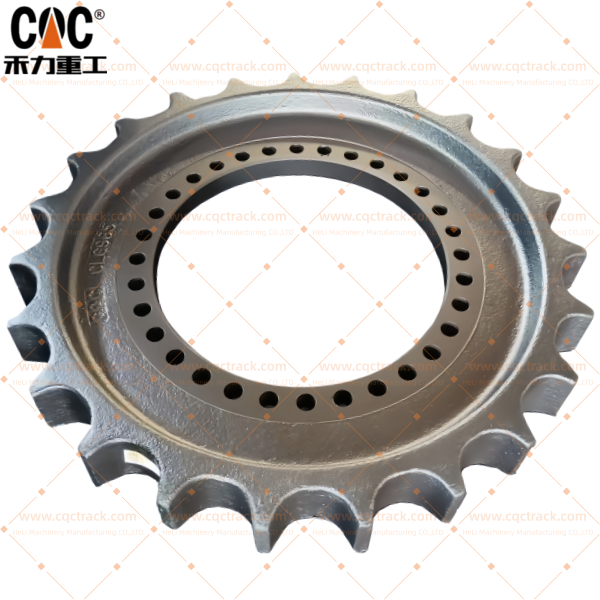

LIUGONG 46A0372 CLG965 Sprocket Wheel AS/Final Drive Sprocket Group/wanda HELI(cqctrack) Mai ƙera OEM wanda ke China ya samar

Takardar Bayanan Fasaha:Rukunin Sprocket na Liugong 46A0372 CLG965 Tayar Sprocket AS/Final Drive

1. Gano Sassan da Rarrabawa

• Bayani na OEM:46A0372
• Aikace-aikace:injin haƙa rami na Liugong CLG965
• Nau'in Kayan Aiki:Taro na Ƙarshe na Sprocket (AS)
• Mai Bayarwa:HELI (cqctrack), China

2. Bayanan Fasaha

2.1 Girman Inji

• Diamita na farati: 428.6±0.3mm
• Siffar haƙori: ISO 606-B daidaitaccen bayanin martabar involute
• Adadin haƙora: 19 (Z=19)
• Diamita na ramin: 165H7 (+0.040/0)
• Flange mai hawa: SAE J618b misali
• Faɗin taro gabaɗaya: 310±0.5mm
• Faɗin haƙori: 85±0.2mm

2.2 Tsarin Kayan Aiki

• Jikin Sprocket: ƙarfe mai ƙarfe 42CrMo4, an cire gas ɗin daga injin
• Sashen haƙori: Ƙarfe mai tauri 4140H
• Haɗakar cibiyar: ƙarfe mai siffar QT600-3
• Maƙallan: DIN 912 M12×1.75×80, aji 12.9

3. Halayen Aiki

3.1 Ƙarfin Lodawa

• Ƙarfin juriya mafi girma: 1250 MPa min
• Iyakar juriya a saman: 1600 N/mm²
• Ƙarfin gajiya: 550 MPa a zagaye 10⁷
• Juriyar Tasiri: 45J a -20°C

3.2 Gyaran Zafi da Injiniyan Sama

• Taurin saman haƙori: 58-62 HRC
• Zurfin shari'ar: 3-5mm tare da sauyawar tauri a hankali
• Taurin zuciya: 28-32 HRC
• Zafin jiki: 320±10°C don rage damuwa
• Kammala saman: Ra 3.2 μm akan saman aiki

4. Haɗin Bearing & Drive

4.1 Tsarin Watsa Wutar Lantarki

• Bayanin Spline: SAE J498A 36T 16/32 pitch
• Taurin Spline: 45-50 HRC
• Diamita na littafin ɗaukar kaya: 120g6 (-0.012/-0.034)
• Juriyar gudu: ≤0.05mm TIR

4.2 Hatimi & Kariya

• Wurin rufe mai: An yi masa fenti mai tauri, minti 0.05mm
• Rufe saman da ke gudana: Kammala ƙasa Ra 0.8 μm
• Kariyar tsatsa: Rufe ƙarfen zinc-nickel, 15μm

5. Ka'idojin Ingancin Masana'antu

5.1 Tsarin Samarwa

• Hanyar ƙirƙira: Ƙirƙirar rufaffiyar, inganta kwararar hatsi
• Juriyar Inji: ISO 2768-mK
• Daidaiton bayanin haƙori: AGMA Aji 9
• Daidaitawar daidaito: G6.3 a saurin aiki

5.2 Tabbatar da Inganci

• Gwajin Ultrasonic: Bisa ga ma'aunin ASTM A388
• Duba barbashi na maganadisu: 100% rufewa
• Taswirar tauri: Mafi ƙarancin maki 9 ga kowane hakori
• Tabbatar da girma: CMM tare da rashin tabbas na 0.02mm

6. Sigogi na Shigarwa da Sabis

6.1 Bayanin Shigarwa

• Ƙarfin ƙwanƙwasa na ɗagawa: 280±20 N·m
• Gudun fuska na flange: ≤0.08mm
• Daidaita bayan fuska: 0.1-0.15mm
• Bukatar da ake buƙata kafin lodawa: 0.05-0.08mm

6.2 Jadawalin Kulawa

• Dubawa ta farko: Sa'o'i 50 na aiki
• Tazarar man shafawa: awanni 250
• Daidaitawar hali: awanni 1000
• Cikakken gyara: awanni 8000

7. Iyakokin Aiki

• Matsakaicin juzu'in shigarwa: 12,500 N·m
• Ci gaba da aiki zafin jiki: -35°C zuwa +120°C
• Matsakaicin nauyin girgiza na ɗan lokaci: 180% na ƙarfin da aka ƙididdige
• Man shafawa da aka ba da shawarar: Man man gear mai matsin lamba na ISO EP 220

8. Marufi & Takaddun Shaida

• Marufi na fitarwa: Mai jure yanayi, mai jituwa da ISPM15
• Alamar sashi: Etching na lantarki
• Takardu: Takaddun shaida na kayan aiki 3.1 bisa ga EN 10204
• Garanti: watanni 18 ko awanni 5000 na aiki

Lura: An ƙera wannan rukunin sprocket na ƙarshe don dacewa da ƙayyadaddun aikin OEM kuma an ƙera shi ƙarƙashin yarjejeniyar haɗin gwiwa ta fasaha da Liugong. Duk mahimman matakai ana iya gano su bisa ga ƙa'idodin ƙasa da ƙasa.
